BR130BT
Barcode reader
Portable Hand Scanner
A wireless solution for the needs of reading any codes at the point of sale, warehouses, industries, logistic operators, etc.
The BR130 series delivers aggressive performance, with fast and accurate readings, even of damaged or small codes. The extended DOF allows distances of up to 40cm, ideal for reading hard-to-reach objects.
It has a built-in long battery life, and charging is via the USB C port, just like the new generation of mobile devices, for added convenience.
It has a simple and elegant design, inspired by classic models, but with a modern touch.
Highly ergonomic, it fits comfortably in the vast majority of hands, ensuring operator comfort and productivity and reducing fatigue in intensive use.
With a solid frame, the BR130 is designed to withstand accidental drops and ensure durability. The trigger has been tested for an expected lifetime of more than 5 million clicks.
Technical specifications
|
Ótica |
CMOS imager, 640×480 pixels |
|
Iluminação |
LED branca, mira linear LED vermelha |
|
Descodificação de Simbologias |
2D: QR Code, PDF417, Data Matrix, HanXin, Maxicode, Postal code, etc. 1D: Code128, UCC/EAN-1 28, AlM128, EAN-8, EAN-1 3, ISBN/ISSN, UPC-E, UPCA, Interleaved 2 of 5, ITF-4/6, Matrix 2 of 5, lndustriaI 25, Standard 25, Code39, Codabar, Code93, Code11, Plessey, MSI-Plessey, RSS-14, RSS-Limited, RSS-Expand, etc. |
|
Profundidade de Visão (DOF) |
Code39 (5mil): 20-170mm; EAN (13mil): 30-350mm; QR (20mil): 20-200mm; DM (10mil): 15-120mm; PDF417 (7mil): 25-150mm Distância de leitura máxima: 400mm |
|
Campo de Visão (FOV) |
Horizontal: 40 °, Vertical: 30 ° |
|
Tolerância Ângular |
Pitch: +60º, Skew: +60º, Roll: 360º |
|
Qualid. Mínima de Impressão |
Resolução >3mil, Contraste >20% |
|
Modos de leitura |
Manual (trigger/botão), automático (autosense), contínuo |
|
Notificações |
LED multicolorido (visuais), beep (sonoras) |
|
Bateria |
2600mAh li-ion integrada |
|
Autonomia expectável |
12h de operação (1 scan por seg.) |
|
Parâmetros Elétricos |
Tensão operacional: 3.7VDC+10%; Corrente: standby 40mAh, oper.130mAh |
|
Comunicações wireless |
Bluetooth 5.0 Comunicação até 30m (área aberta) |
|
Interface |
USB type C, carregamento e comunicações (USB HID, USB Virtual COM) |
|
S.O. suportados |
Windows, Android, iOS |
|
Temperatura suportada |
Operação: -20Cº a 50Cº, Armaz.: -30Cº a 70Cº |
|
Resistência e Robustez |
IP42, resistência a líquidos, partículas e quedas de 1.5m |
|
Dimensões e Peso |
93 x 63 x 166 mm, 171 gr |
|
Certificações |
CE, FCC, RoHS |
|
Garantia |
2 Anos |

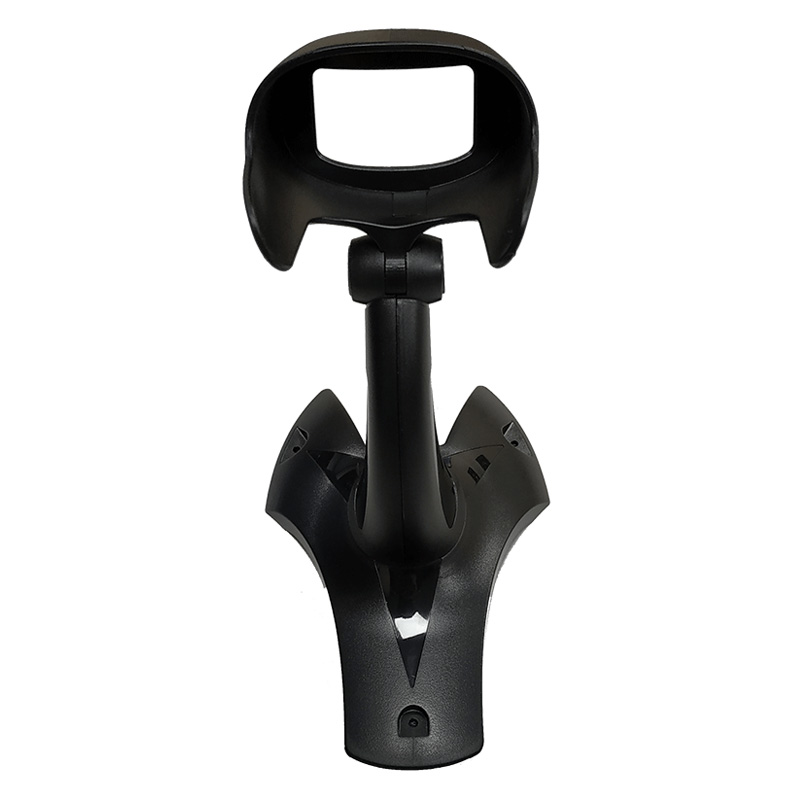

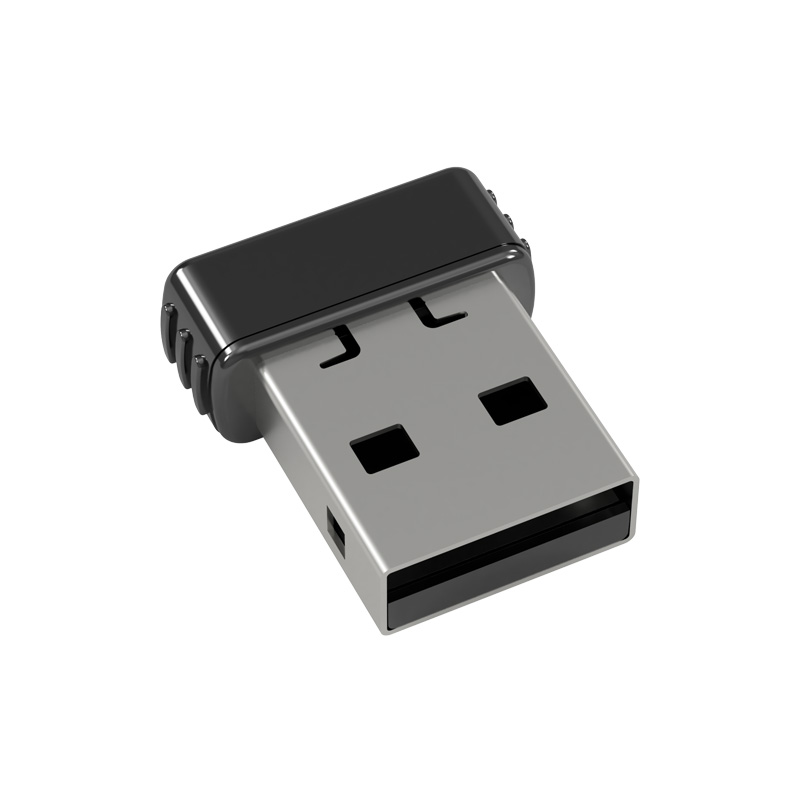

Optional Accessories
